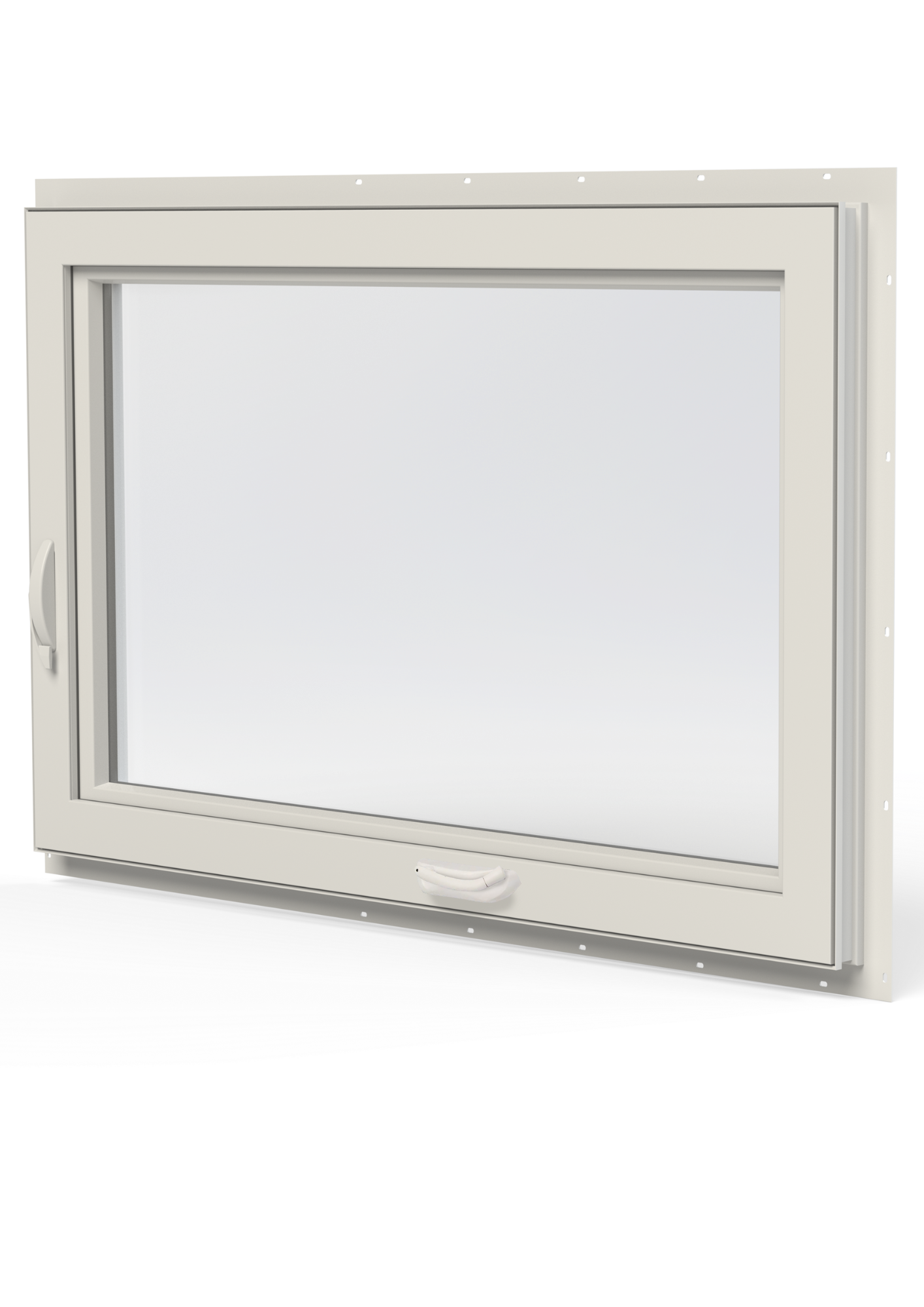

300. X. Awning

• Depth of frame: 3 1/4”

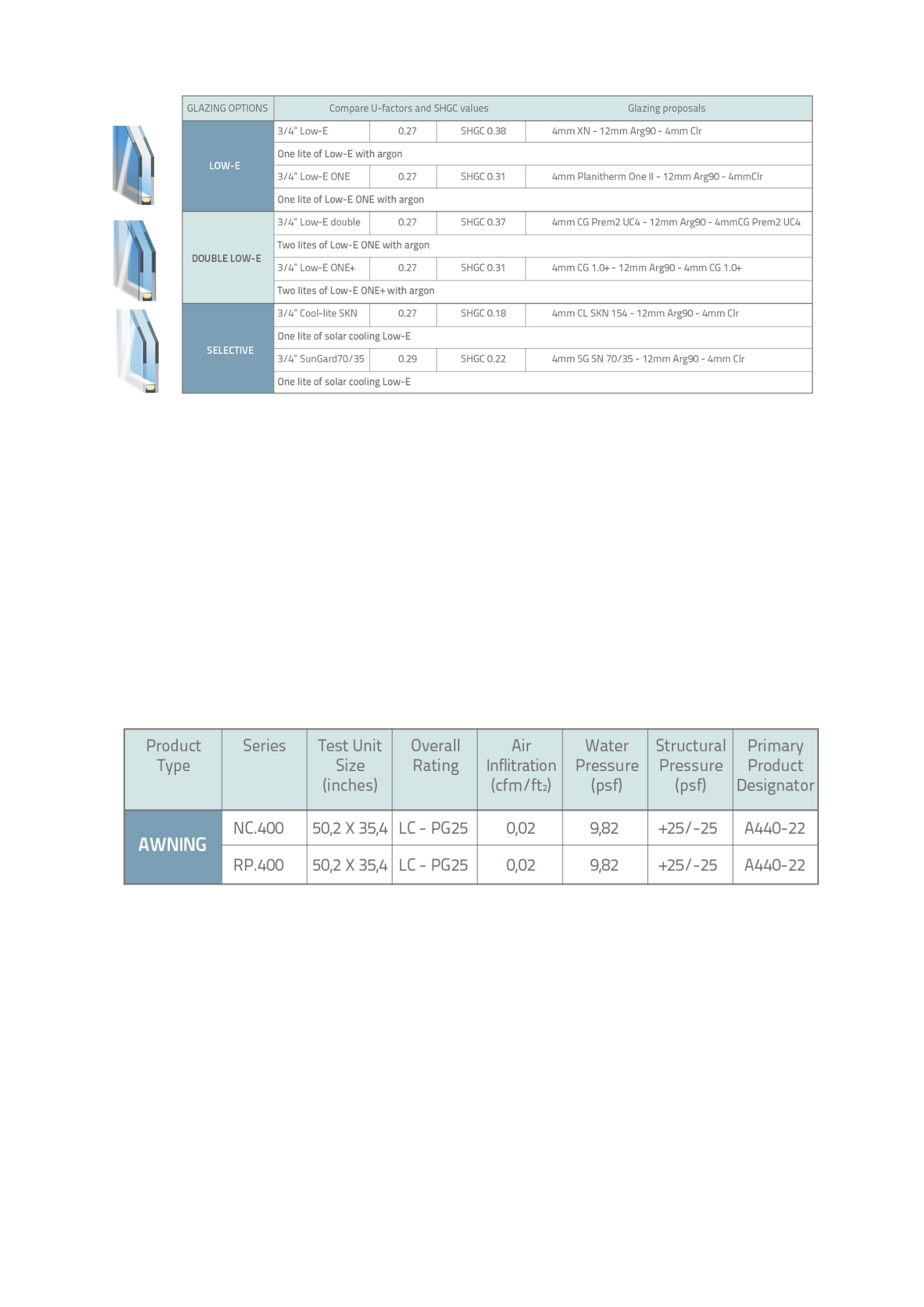

• Glazing thickness range: up to 3/4”
• Opens and closes with a special crank and a single handle
• Exteriorly glazed sash Integral accessory grooves
• Excellent triple sealing Integral nailing fin for new-construction applications
• Available without integral nailing fin for replacement window applications

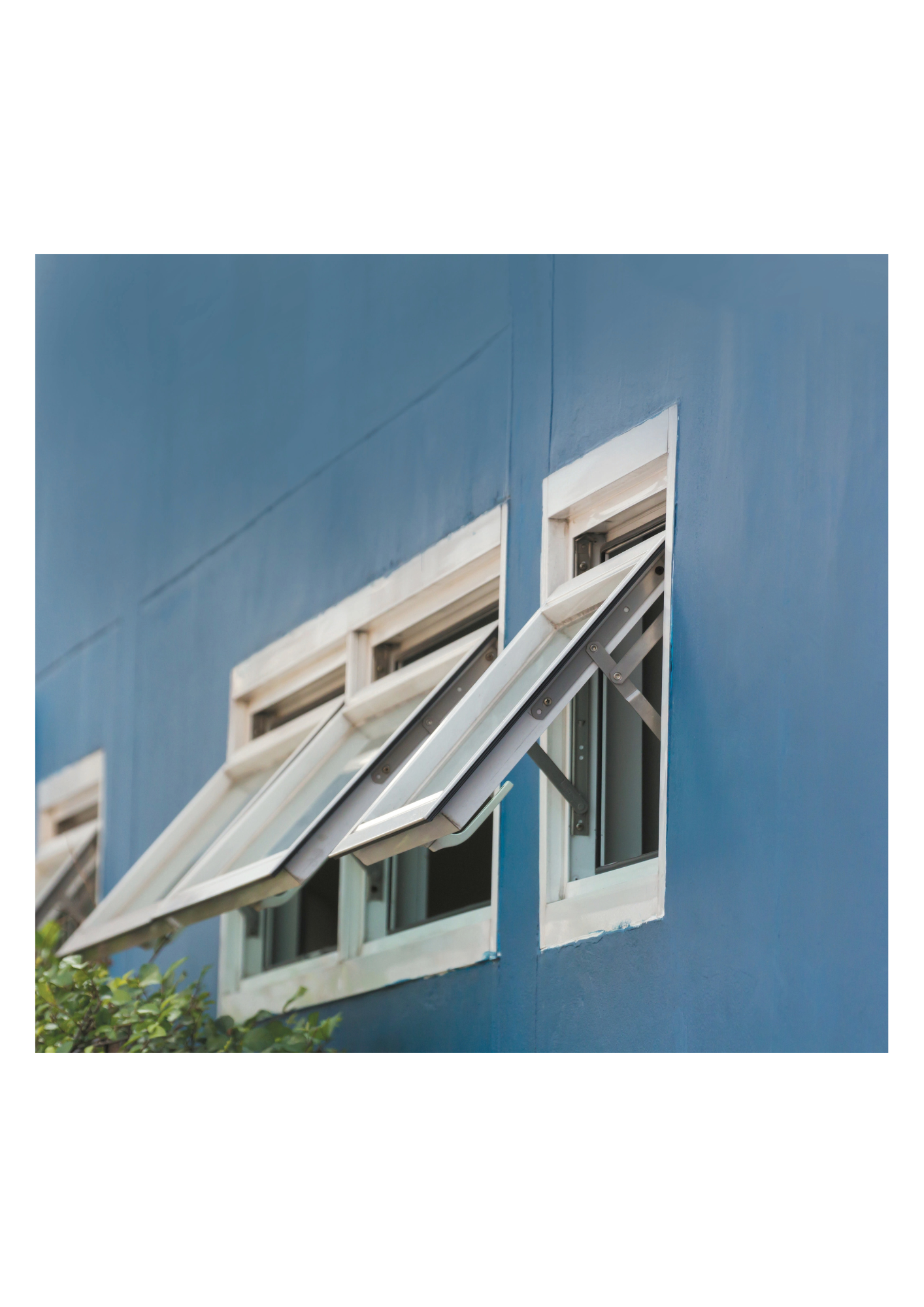

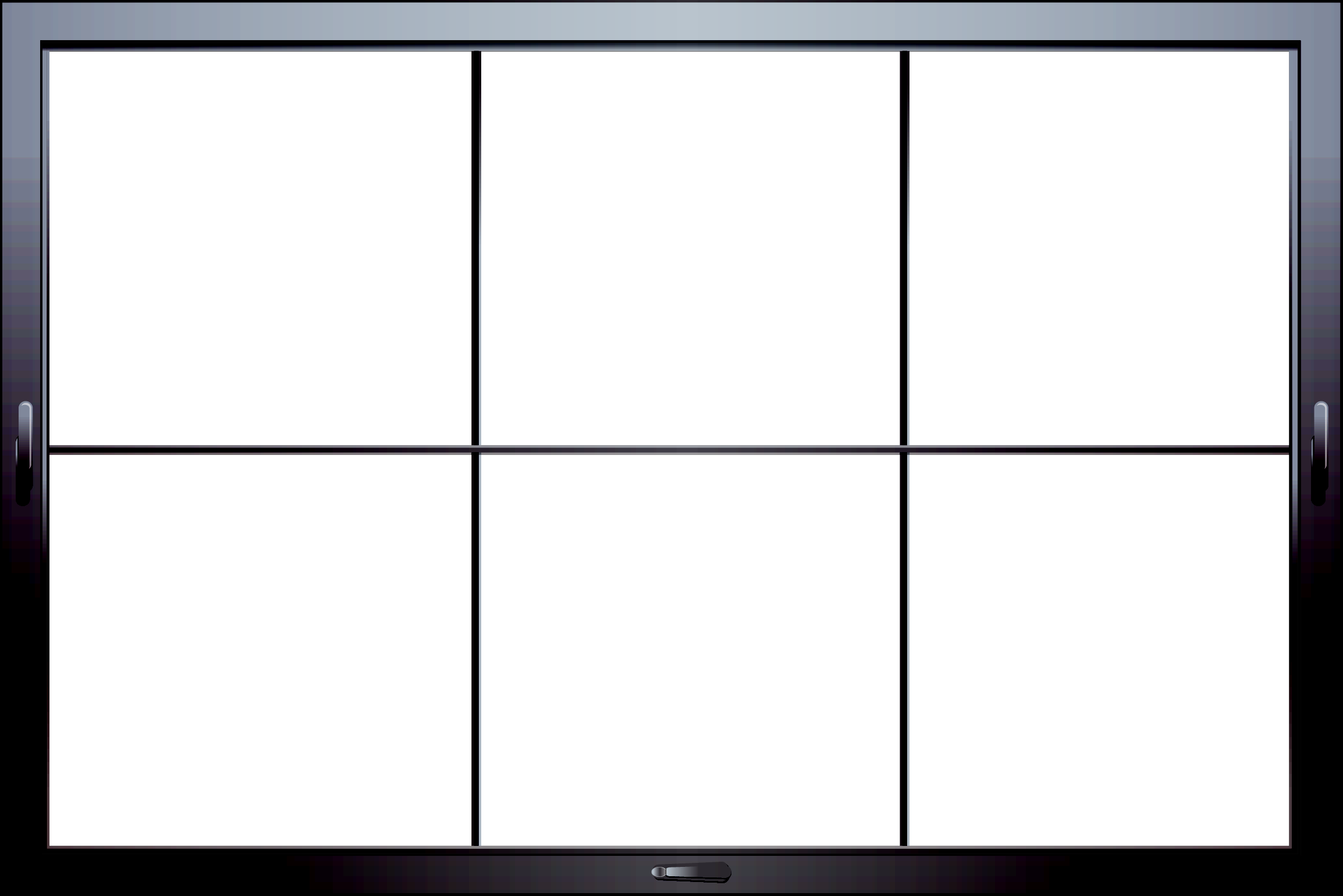

Awning windows are hinged at the top and open outward from the bottom, creating a sloping „awning” effect when they’re open. This design allows for ventilation while also protecting from rain or other elements that might enter through an open window. Awning windows are often used in bathrooms, kitchens, and other areas where privacy and ventilation are essential. They are typically operated using a crank mechanism or a push-out lever, allowing the user to easily open and close the window to the desired position.
